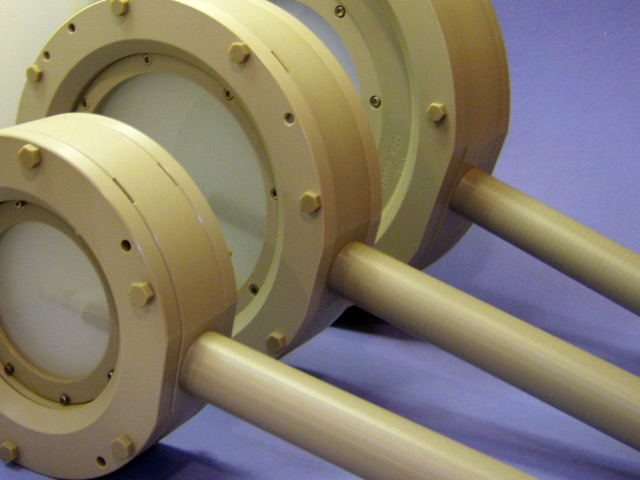

Wet Etching: Single IL

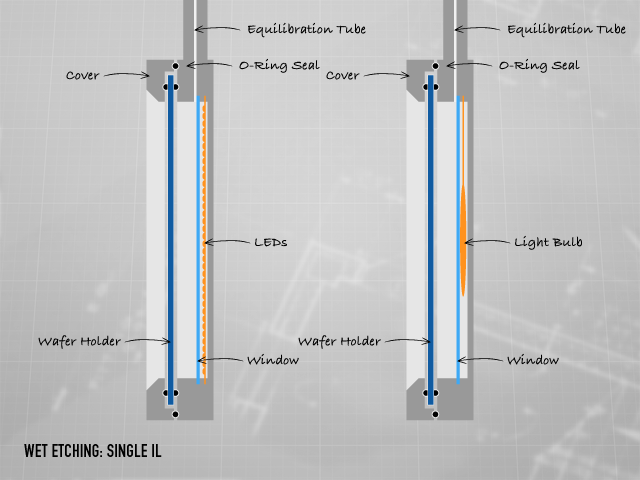

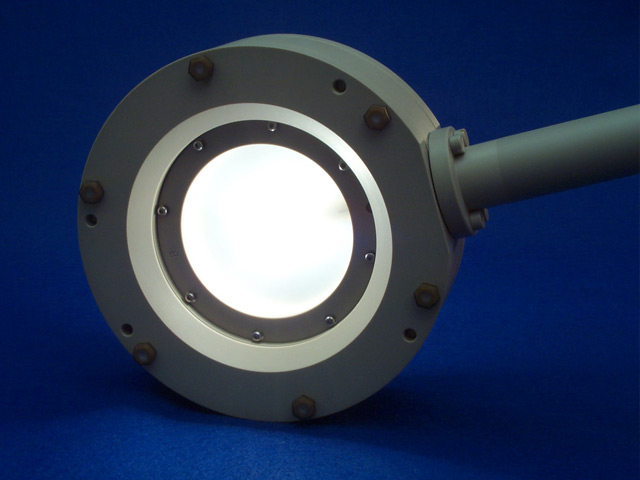

Wafer holder for single sided etching with internal illumination.

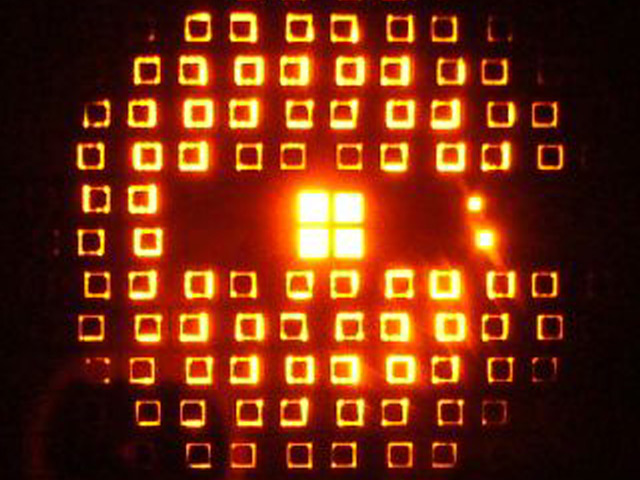

A unique feature of the Single-IL type is an integrated halogen lamp or LED array for optical inspection of the membrane thickness. Silicon membranes of about 22 µm and less are optically transmissive and appear in different shades of brown depending on their thickness. The backside illumination feature is a helpful tool to overcome some of the shortcomings of time based etch-stop techniques.

Images

Click to enlarge

Documentation and
Downloads

For more information, please download our product info below.

For a complete list of our product information sheets please see our Documentation Download Section.
